7ft One-Piece Pool Table Slate Specifications
Our 7ft one-piece pool table slate is manufactured for bar, coin-operated and home pool tables. The specifications below represent a typical 19mm natural slate configuration. Because pool table designs vary between manufacturers, brands and markets, the final dimensions and machining details are produced according to the buyer’s drawing or table design.
| Specification | Standard / Available Option |
|---|---|
| Product Type | One-Piece Pool Table Slate |
| Suitable Table Size | 7ft Pool Table |
| Material | Natural Slate |
| Construction | One-Piece Construction |
| Typical Thickness | 19mm |
| Reference Weight | Approximately 130–140 kg |
| Overall Dimensions | Manufactured according to the customer’s drawing or table design |
| Playing Surface | Precision ground for a smooth and level finish |
| Pocket Openings | Custom machined according to the required pocket design |
| Bolt Holes | Custom drilled according to the customer’s drawing |
| Underside Support | Optional wood backing or support frame, subject to table design |
| Edge Machining | Custom machined according to the technical drawing |
| Applications | Bar, coin-operated and home pool tables |
| Supply Type | OEM manufacturing and bulk supply |
| Packing | Reinforced export wooden crate |
Final slate dimensions, pocket openings, bolt-hole positions and edge details are manufactured according to the buyer’s table design or technical drawing.
For an accurate quotation and production review, please send us the required slate dimensions, thickness, pocket design, bolt-hole layout, order quantity and technical drawing. If a complete drawing is not available, our team can review your table specifications, sketches or reference sample information.
Why Choose a One-Piece Slate for a 7ft Pool Table?
A one-piece slate provides a continuous playing surface without joints between separate slate sections. For many 7ft bar, coin-operated and residential pool table designs, it offers a practical solution for standardized table production. Each slate can be precision ground and factory machined to match the required dimensions, pocket openings, bolt-hole positions and supporting structure.
Seamless Playing Surface
A 7ft one-piece pool table slate forms a continuous playing bed with no joints between separate slate sections. This eliminates the need to align, level and fill intermediate slate seams during table assembly. When properly supported and leveled within the table frame, the precision-ground natural slate provides a smooth and consistent surface for cloth installation and ball play.
Suitable for Compact Pool Tables
One-piece slate is commonly used in 7ft pool tables designed for commercial and residential environments where a compact table format is required. Typical applications include:
- Bar-size pool tables
- Coin-operated pool tables
- Residential pool tables
- Compact entertainment tables
The final slate size and machining pattern must match the specific table design. Coin-operated tables, in particular, may require customized pocket openings, ball-return clearances, underside cut-outs or mounting holes.
Stable Factory-Machined Construction
The slate is ground, cut and machined at the factory according to the buyer’s technical drawing or table design. Pocket openings, bolt holes, edge details and optional underside features can be produced to suit the table frame and playing-bed structure. Standardized OEM machining helps pool table manufacturers maintain consistent specifications across repeat orders and production batches.
Efficient Table Assembly
Because the playing bed is supplied as a single slate, installers do not need to align multiple slate sections or level and fill the joints between them. This reduces the seam-related preparation required before the table cloth is fitted. However, a typical 19mm 7ft one-piece pool slate weighs approximately 130–140kg and still requires professional handling equipment, suitable structural support and adequate access to the installation area.
A one-piece slate is a suitable choice when the table design requires a continuous 7ft playing bed and the installation site can accommodate professional handling of the complete slab. For OEM production, please provide the slate dimensions, thickness, pocket design, bolt-hole layout, underside details and required quantity for technical review.
Applications of 7ft One-Piece Pool Table Slate
Our 7ft one-piece pool table slate is designed for compact commercial and residential pool tables. It can be manufactured to suit different table frames, pocket systems and installation requirements. Typical applications include bar and pub pool tables, coin-operated pool tables and home pool tables. Final dimensions and machining details are produced according to the buyer’s technical drawing or table design.
Bar and Pub Pool Tables
7ft pool tables are widely used in bars, pubs, clubs and other commercial entertainment venues where floor space is limited and the tables may be played frequently. A one-piece bar pool table slate provides a continuous playing surface without intermediate slate joints, reducing seam-related preparation during table assembly. The slate can be machined to match the required table frame, pocket openings, bolt-hole positions and supporting structure.

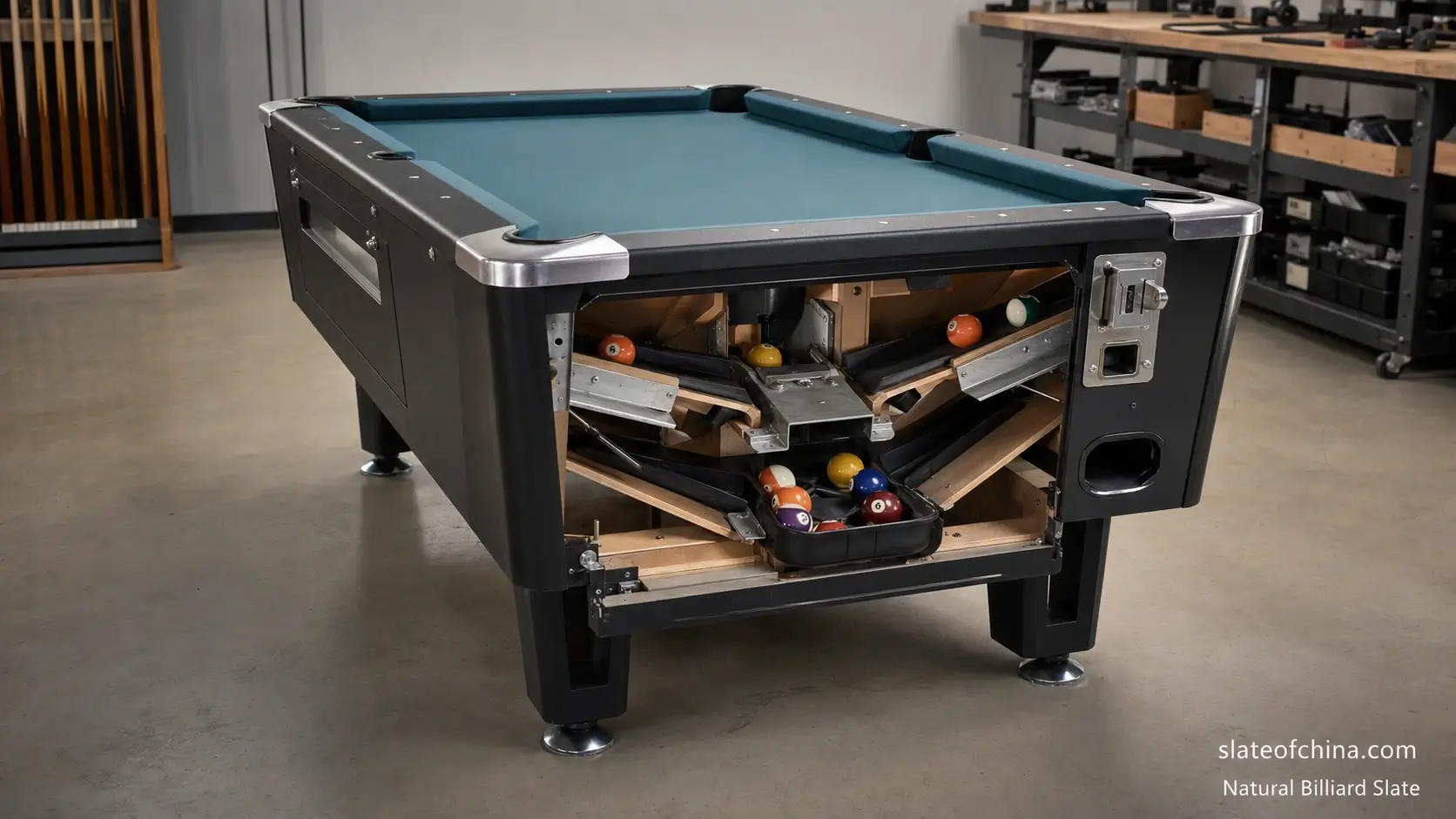

Coin-Operated Pool Tables
Coin-operated pool tables often require slate machining that matches the internal ball-return system and cabinet structure. We can produce coin-operated pool table slate with customized pocket openings, bolt holes, edge details and underside features according to the buyer’s drawing. Clearances for ball channels, pocket assemblies and frame supports should be confirmed before production to ensure that the slate fits the complete table design.
Underside grooves or cut-outs can also be machined where required by the approved technical drawing.
Home Pool Tables
A 7ft one-piece slate is also suitable for home pool tables installed in game rooms, recreation rooms and other spaces where a compact table size is preferred. Before selecting a one-piece slate, buyers should check door widths, stairways, corridors, turning space and access to the installation room. Because a typical 19mm slate weighs approximately 130–140kg, professional handling, adequate access and a properly designed support frame are essential.
If access is restricted, a sectional slate design may be more practical and should be evaluated before the table is manufactured or ordered.
Each pool table model may use different slate dimensions, pocket geometry, mounting points and underside clearances. To confirm suitability for your project, please send us your table type, slate drawing, required thickness, machining details, order quantity and destination. Our team will review the specifications before quotation and production.
Custom Dimensions and OEM Machining
We manufacture 7ft one-piece pool table slate as an OEM component for pool table manufacturers, brands, importers and wholesale distributors. Each slate can be cut, precision ground and CNC machined according to the buyer’s approved drawing, table structure or reference sample. This allows the finished slate to match the required table frame, pocket system, mounting points and supporting components.
Custom Slate Specifications
Depending on the table design and production requirements, the following specifications and machining details can be customized:
- Overall slate length and width
- Slate thickness
- Pocket opening shape
- Pocket opening dimensions
- Bolt-hole positions
- Countersunk holes
- Edge profiles
- Underside grooves or cut-outs
- Wood backing or support components
- Customer logo or identification marking
- Export packaging requirements
All machining details are reviewed before production. The availability of special underside machining, backing components and identification marking depends on the approved design, order quantity and manufacturing requirements.
Drawings or Samples Recommended
Because 7ft pool table designs vary by brand, market and table construction, there is no single slate dimension or machining pattern suitable for every model. We recommend that buyers provide a CAD drawing, technical sketch or physical sample before production.
The drawing should clearly indicate the overall dimensions, slate thickness, pocket geometry, hole diameters, bolt-hole positions, countersink details, edge profiles and any underside machining. Critical dimensions and tolerances should also be identified where applicable.
If a complete CAD drawing is not available, you may send a dimensioned sketch, clear photographs or an existing slate sample for an initial technical review.
OEM Production Process
1. Drawing or Sample Submission
The buyer sends a CAD drawing, technical sketch or reference sample together with the required quantity and application details.
2. Technical Review
Our factory reviews the overall dimensions, thickness, pocket design, hole layout, edge details, underside features and supporting components.
3. Sample or Pre-Production Confirmation
A sample, production drawing or other pre-production confirmation is completed as agreed before batch manufacturing.
4. Batch Production and Inspection
After approval, the slate is cut, ground and machined according to the confirmed specifications. Key dimensions and visible machining details are inspected during production and before packing.
5. Export Packing and Shipment
The finished 7ft pool table slate is protected, securely fixed and packed in an export wooden crate for shipment to the agreed destination.
Producing pool table slate from an approved drawing helps reduce dimensional misunderstandings and improves compatibility with the table frame, pocket assemblies, ball-return system and mounting structure. For repeat OEM orders, the confirmed specifications can also provide a clear reference for future production.
What to Send for an OEM Quotation
For an accurate manufacturing and export quotation, please provide:
- Table type and target market
- Slate drawing or dimensioned sketch
- Overall length and width
- Required thickness
- Pocket design and dimensions
- Bolt-hole and countersink details
- Underside machining or backing requirements
- Required order quantity
- Packaging requirements
- Destination port or delivery destination
Send us your drawing and required quantity. Our factory will review the specifications and confirm the available machining options before quotation. Our email: sinoslate@gmail.com
Precision Manufacturing for Consistent Ball Roll
Consistent ball roll begins with a smooth, accurately machined slate playing surface. Our natural pool table slate is selected, cut, CNC machined and precision ground according to the approved drawing. Key dimensions, thickness, flatness, pocket openings, holes, edges and corners are inspected before the finished slate is cleaned and packed for export.
From Natural Slate to a Precision-Machined Playing Bed
1. Natural Slate Selection
Natural slate blocks are selected for suitable structure, integrity and processing quality before cutting. Material with visible defects that may affect machining or the finished playing surface is identified during the initial review.
2. Cutting to Required Dimensions
The slate is cut to the required overall length, width and basic profile according to the approved production drawing, with allowance for subsequent grinding and machining.
3. CNC Pocket and Hole Machining
Pocket openings, bolt holes, countersunk holes and other specified features are CNC machined to match the confirmed table design. Hole positions and pocket geometry are checked against the production drawing.
4. Precision Surface Grinding
The playing surface is precision ground to achieve the required smoothness, thickness and flatness for pool table production. Controlled grinding helps provide a consistent base for cloth fitting and ball movement.
5. Thickness and Flatness Inspection
Slate thickness and surface flatness are inspected at designated points according to the agreed specification. Any required dimensional tolerances should be confirmed in the approved drawing before production.
6. Edge and Corner Inspection
Pocket edges, outer edges, corners, holes and machined details are visually and dimensionally checked for condition and conformity with the confirmed design.
7. Cleaning and Export Packing
After inspection, machining dust and loose particles are removed. The finished slate is protected, securely fixed and packed in a reinforced export wooden crate or reinforced fumigation-free plywood crate to reduce movement and edge damage during handling and shipment.
This is a brief overview of our production and inspection process. For a more detailed explanation of slate selection, cutting, grinding, CNC machining and quality control, read our Billiard Slate Manufacturing Process guide.
Quality Inspection Before Shipment
Before shipment, each finished pool table slate order is inspected against the approved drawing, confirmed specifications and packing requirements. The inspection covers key dimensions, thickness, surface flatness, pocket openings, bolt-hole locations, edges, visible condition and export packing.
This final check helps identify dimensional discrepancies, visible damage and packing issues before the slate leaves the factory.
Pre-Shipment Inspection Checklist
1. Overall Dimensions
The overall length, width and finished profile are checked against the approved production drawing or order specification.
2. Thickness Consistency
Slate thickness is measured at designated inspection points to check consistency across the finished playing bed and conformity with the confirmed specification.
3. Surface Flatness
The ground playing surface is checked using suitable measuring tools, such as a precision straightedge and feeler gauge, according to the agreed inspection method.
4. Pocket Opening Dimensions
Pocket opening shape, position and key dimensions are checked against the approved drawing to confirm that they match the required pool table design.
5. Bolt-Hole Location
Bolt-hole positions, hole diameters and countersunk details are compared with the approved hole layout. Special mounting points are also checked where required by the table structure.
6. Edge Integrity
Outer edges, pocket edges, corners and machined areas are inspected for chips or other visible defects that may affect handling, assembly or cloth fitting.
7. Visible Cracks or Damage
The slate surface, underside, edges and corners are visually inspected for cracks, impact marks or handling damage before packing.
8. Packing Condition
Before the crate is closed, the slate arrangement, protective materials, internal supports and fixing condition are checked to reduce movement, edge contact and handling damage during shipment.
The completed crate is also checked for external condition, marking and order identification before shipment.
A structured pre-shipment inspection helps pool table manufacturers and importers reduce the risk of receiving slate with incorrect machining, visible damage or unsuitable packing. For OEM orders, buyers may provide their own inspection checklist, critical dimensions and acceptance requirements for review before production.
Export Packaging for One-Piece Pool Slate
One-piece pool table slate has a large surface area and substantial weight, making professional export packaging essential. Before shipment, each finished slate is protected, supported and securely fixed inside a reinforced wooden crate to reduce movement, edge contact, moisture exposure and handling damage during transportation.
The packing method can be reviewed according to the slate dimensions, order quantity, shipping route and container-loading requirements.
Protective Export Packing
Our export packing is designed around the weight, dimensions and vulnerable edges of one-piece billiard slate. Protective materials, internal supports and fixing points are arranged to keep the slate stable inside the crate and reduce direct contact with hard surfaces.
1. Protective Material Between Slate and Supports
Protective and cushioning materials are placed between the slate and the internal supports to reduce direct contact, vibration and localized pressure during handling and transportation.
2. Reinforced Wooden Crate
The slate is packed in a reinforced export wooden crate designed to support its weight and provide protection during forklift handling, warehouse movement and container loading.
3. Corner and Edge Protection
Special attention is given to the corners, pocket openings and outer edges, as these areas are more vulnerable to impact and chipping. Suitable edge guards, cushioning materials or protective blocks are added according to the slate profile and packing design.
4. Moisture-Resistant Wrapping
The slate is wrapped with moisture-resistant protective material before the crate is closed. This helps reduce exposure to moisture, dust and contamination during storage and sea transportation.
5. Secure Internal Fixing
Internal supports, blocking components and fixing materials are used to restrict movement inside the crate. The packing arrangement is checked before closure to reduce sliding, shifting and slate-to-slate contact during transportation.
6. Packing Condition Inspection
Before shipment, the protective materials, support points, internal fixing and external crate condition are inspected. Shipping marks and order identification can also be added according to the confirmed packing requirements.
Container Loading for Bulk Orders
For wholesale and OEM orders, crate dimensions and loading arrangements are planned with the order quantity and container space in mind. The packed crates are positioned and secured to support stable container loading and practical unloading at the destination.
Container type, loading quantity and final packing arrangement should be confirmed according to the finished crate dimensions, total gross weight and applicable transport requirements.
A properly designed export crate helps pool table manufacturers, importers and distributors reduce the risk of movement, edge damage and packing failure during international transportation. Buyers with specific warehouse, forklift, unloading or container-loading requirements are encouraged to provide them before quotation and production.
Why Buy 7ft Pool Table Slate from Slate of China?
Slate of China supplies 7ft pool table slate as a manufacturing component for pool table factories, brands, importers and wholesale distributors. Our focus is not retail replacement slate, but drawing-based OEM production, precision machining, inspection and export-ready supply for commercial orders.
1. Natural Slate Manufacturing Experience
Our experience in natural slate processing helps us understand the material characteristics that affect cutting, grinding, machining, handling and packing. Slate is reviewed before production, and visible conditions that may affect the finished playing surface or subsequent processing are identified during manufacturing.
2. Precision Grinding and CNC Machining
Each pool table slate can be precision ground and CNC machined according to the confirmed specification. Pocket openings, bolt holes, countersunk holes, edge profiles and other required features are produced to match the approved table design.
Controlled surface grinding and machining help provide the dimensional consistency required for table-frame assembly, cloth fitting and stable ball movement.
3. Production Based on Customer Drawings
Because pool table designs vary by brand and market, production is based on the buyer’s approved CAD drawing, dimensioned sketch or confirmed sample. Overall dimensions, slate thickness, pocket geometry, hole layout and other critical details are reviewed before batch manufacturing.
Drawing-based production helps reduce dimensional misunderstandings and improves compatibility with the table frame, pocket assemblies, mounting points and other supporting components.
4. OEM Supply for Manufacturers and Importers
We support OEM pool table slate orders for table manufacturers, billiard brands, importers and wholesale distributors. Custom options may include slate dimensions, thickness, pocket design, bolt-hole layout, underside machining, wood backing, product identification and export packaging.
For repeat orders, confirmed drawings and production specifications provide a clear reference for future manufacturing and quality inspection.
5. Inspection and Export Packaging Before Shipment
Before shipment, finished billiard slate is checked against the approved drawing and order specification. Inspection may cover overall dimensions, thickness, surface flatness, pocket openings, bolt-hole locations, edges, visible condition and packing requirements.
The slate is then protected, securely fixed and packed in a reinforced export wooden crate to reduce movement, edge contact and handling damage during international transportation.
Whether you are developing a new 7ft pool table or sourcing slate for an established model, our goal is to provide a precision-machined natural slate component that matches the confirmed design and is prepared for international shipment. Send us your drawing, required quantity and destination port for technical review and quotation.
Need a Reliable OEM Slate Supplier?
Send us your 7ft pool table slate drawing, required quantity and destination port. Our factory will review the dimensions, machining details and export packing requirements before quotation.
Frequently Asked Questions
A 7ft pool table may use either a one-piece slate or a three-piece slate, depending on the table design, frame structure and intended use. One-piece slate is commonly found in some coin-operated tables, bar pool tables and home pool tables, but it is not used in every 7ft model. Always confirm the slate construction and dimensions before ordering.
A 7ft pool table may use either a one-piece slate or a three-piece slate, depending on the table design, frame structure and intended use. One-piece slate is commonly found in some coin-operated tables, bar pool tables and home pool tables, but it is not used in every 7ft model. Always confirm the slate construction and dimensions before ordering.
A 7ft one-piece slate with a thickness of approximately 19mm typically weighs around 130–140kg, depending on its exact dimensions and machining. Pocket openings, holes, edge profiles and other design details may affect the final weight. The confirmed net and packed weight can be provided according to the finished specification.
Yes. We can manufacture custom pool table slate from an approved CAD drawing, dimensioned sketch or confirmed sample. Please provide the overall dimensions, thickness, pocket-opening geometry, bolt-hole layout, countersunk details and any required edge or underside machining for technical review.
If a complete drawing is not available, clear photographs and accurately measured dimensions may be submitted for an initial assessment.
Yes. Pocket openings, bolt holes, countersunk holes and other machining details can be customized to suit the pool table frame, pocket system and mounting structure. Their dimensions and positions should be clearly marked on the approved production drawing before manufacturing begins.
A one-piece slate does not require the joints between multiple slate sections to be aligned, leveled and filled. However, its substantial weight makes handling, positioning and frame support more demanding. Suitable lifting equipment, adequate access and professional installation are still strongly recommended.
Before ordering, check doorways, stairs, elevators and other access points to make sure the slate can be moved safely to the installation location.
One-piece pool table slate is protected with suitable cushioning and moisture-resistant materials, with additional protection around the corners, pocket openings and outer edges. It is securely fixed inside a reinforced export wooden crate or reinforced export plywood crate to reduce movement and direct contact during handling and transportation. The final packing arrangement is based on the slate dimensions, order quantity and shipping requirements.
Individual replacement pool table slate may be manufactured subject to technical review and production feasibility. Because slate dimensions, pocket shapes and bolt-hole patterns vary between table models, replacement pieces are normally made to the confirmed original specification rather than supplied as a universal stock item.
Please send the original slate dimensions, thickness, clear photographs and a detailed pocket and hole-position drawing. We will review whether a compatible replacement slate can be produced for your table.
Still Have Questions About Your 7ft Slate?
Send us your CAD drawing or the required slate dimensions, thickness, pocket design, hole layout, order quantity and destination port. We will review the machining and export-packing requirements for your project.
