Introduction: The Journey Beneath the Cloth
Before a World Snooker Championship is decided, before a perfect century break is made, the stone that makes it all possible begins its journey millions of years underground.
Natural slate used in professional billiard tables is not simply “cut to size.” It is a metamorphic rock formed over eons, prized for its unique ability to split into perfectly flat sheets, its density, and its stability.
Understanding how billiard slate is mined and processed reveals why CNC grinding, 6‑side sealing, and precision packaging matter — and helps you, as a buyer, distinguish between a slab that will play true for 50 years and one that will fail in five.
In this guide, we’ll take you through the complete journey:
✅ Geological formation — why slate is naturally suited for billiards
✅ Quarrying — extracting massive blocks from the earth
✅ Cutting into slabs — diamond wire saws and gang saws
✅ CNC grinding — achieving ±0.3 mm flatness
✅ CNC drilling — precision bolt holes to your frame
✅ Sealing — 6‑side moisture protection
✅ Quality control — density, absorption, flatness testing
✅ Export packaging — 15 mm plywood, steel bands, ISPM‑15
💡 Bottom line: Every step matters. Shortcuts at any stage compromise the final playing surface.
📖 Related: What Determines Slate Quality? Buyer’s Guide →
Part 1: The Origins — Why Slate Is Nature’s Perfect Billiard Surface
Geological Formation
Natural slate is a fine‑grained, foliated metamorphic rock formed from ancient sedimentary deposits of clay and volcanic ash. Under immense heat and pressure over millions of years, these layers recrystallize into a dense, durable stone with a unique property: slaty cleavage — the ability to split into thin, smooth sheets.
This natural splitting characteristic (cleavage and grain) is what makes slate ideal for billiard tables. It allows the stone to be split into broad, flat segments that can be further precision‑ground to tournament flatness.
The Three Global Sources
Today, the billiard industry recognizes three primary slate sources, all approved by official world billiards organizations for use in major tournaments:
| Source | Region | Characteristics |
|---|---|---|
| 🇨🇳 China | Yushan County, Jiangxi Province | World’s largest production base; 3 billion cubic meters of bluestone reserves |
| 🇮🇹 Italy | Genoa (Liguria) | Traditional gold standard; extremely fine grain |
| 🇧🇷 Brazil | Minas Gerais | High density; harder than Italian; as good as Italian quality |
Of these, Yushan, China has emerged as the global powerhouse. Today, Yushan produces 250,000 billiard slates and 50,000 complete tables annually, exporting to over 70 countries including the UK and Italy.
📖 Related: Types of Slate Used in the Billiard Industry →
Part 2: Quarrying — Extracting the Raw Stone
Open‑Cast Quarrying
Most billiard slate is extracted through open‑cast quarrying — removing the rock from the earth’s surface rather than underground tunnels. This method allows large blocks to be extracted following the direction of the natural bedding planes.
Before mining begins, geoscientific exploration identifies the richest deposits and estimates potential economic yield.

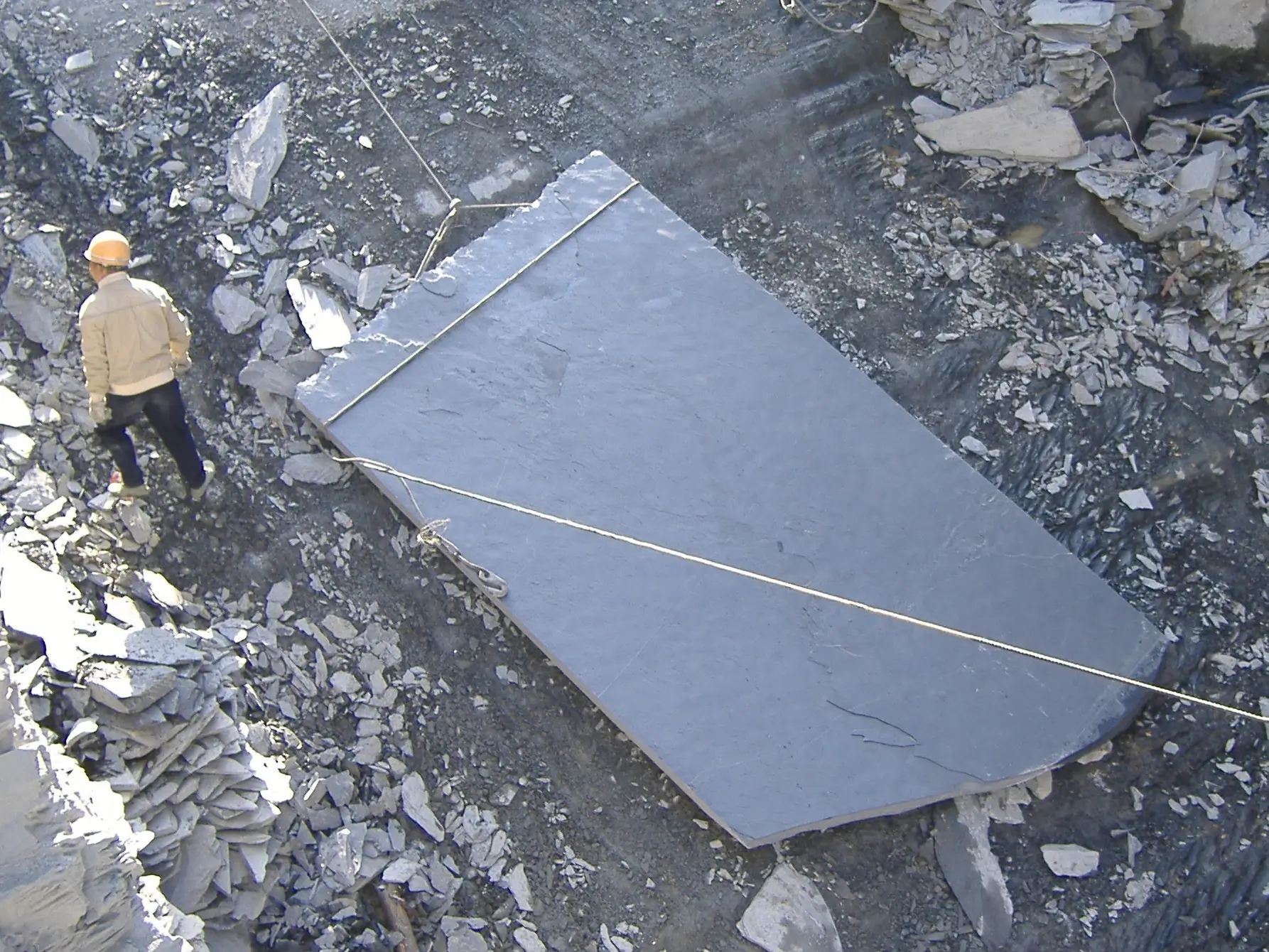

Block Extraction
Once a suitable deposit is identified, blocks are carefully cut using diamond‑tipped wire saws or hydraulic drills. The cutting follows the natural cleavage planes to minimize waste and reduce internal stress fractures. This approach can reduce wastage by an estimated 20–25% compared to less precise methods.
What Makes a Block “Grade A”?
Not every block from the quarry becomes a Grade A billiard slate. Blocks with visible fissures, uneven grain, or inconsistent density are rejected at this stage. Only blocks that pass visual and tap testing move to processing.
💡 Pro Tip: The difference between Grade A and Grade B slate begins at the quarry. Reputable suppliers select only the finest blocks.
📖 Related: Chinese Slate vs Brazilian Slate – Quality & Density Comparison →
Part 3: Cutting into Slabs — From Block to Rough Slate

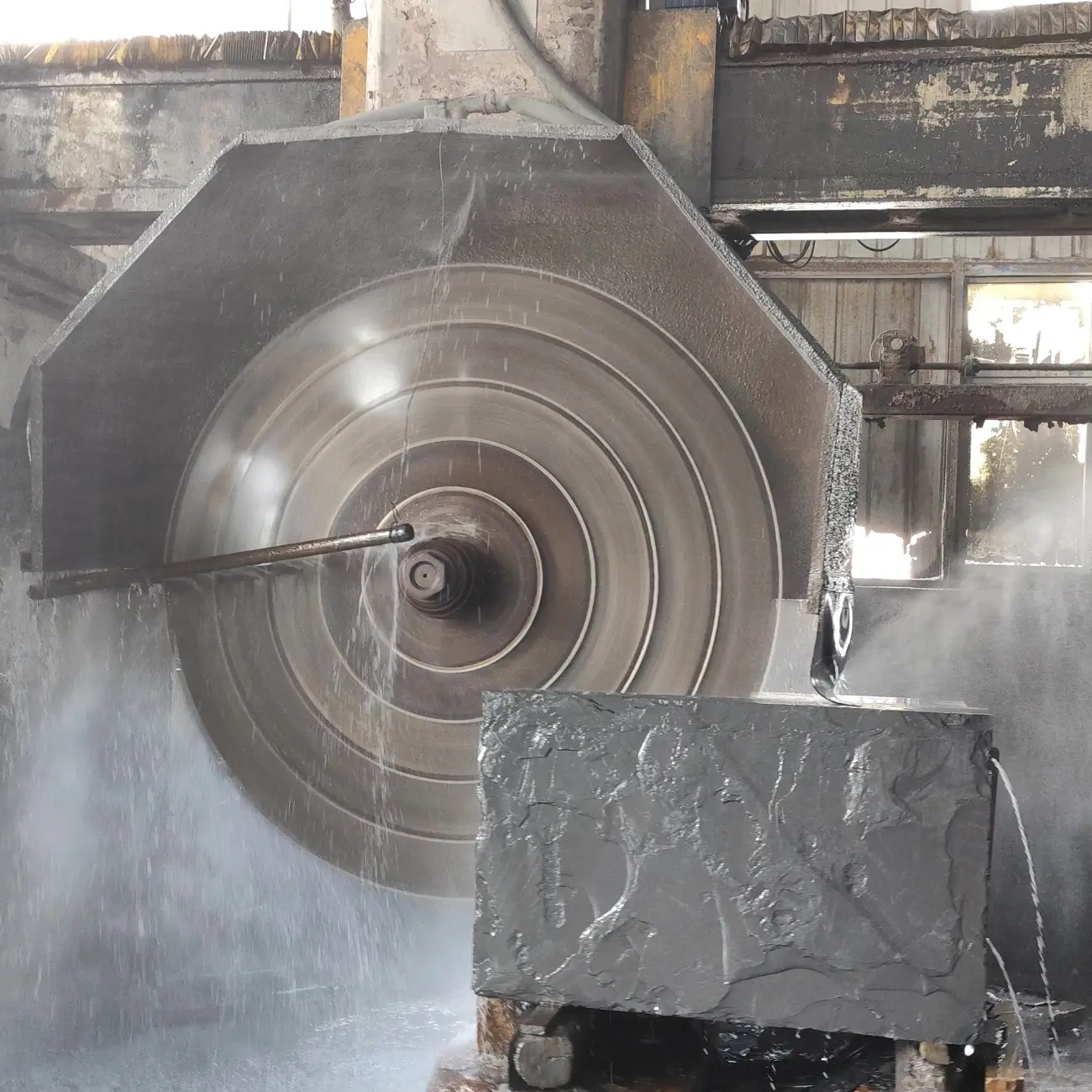

Primary Cutting
Extracted blocks are transported to processing facilities, where they are cut into rough slabs of the required thickness (typically 45 mm, 30 mm, or 25 mm). This is done using:
| Method | Description | Advantage |
|---|---|---|
| Diamond wire sawing | A diamond‑impregnated cable cuts through the block | Faster, more efficient on thick stone |
| Gang saws | Multiple blades cut simultaneously | High volume production |
| Waterjet cutting | High‑pressure water with abrasive garnet | Precision, but slower |
Natural Splitting vs. Sawing
Slate’s natural cleavage planes make it possible to split the stone into thin sheets without sawing every surface. However, for billiard tables requiring precise thickness consistency (±0.5 mm), sawing is necessary to achieve the required dimensional accuracy.
📖 Related: Slate Thickness Guide: 19mm, 25mm, 30mm, 45mm Explained →
Part 4: CNC Grinding — Achieving Tournament Flatness
Why CNC?
The rough sawn slabs are far from flat. Achieving the ≤0.3 mm/m flatness required for tournament play demands CNC surface grinding — a computer‑controlled process that removes material in precise, measured passes.
The Grinding Process
| Stage | Grit | Removal | Purpose |
|---|---|---|---|
| Rough grind | Coarse diamond | 0.5–1.0 mm | Eliminate saw marks |
| Medium grind | Medium grit | 0.3 mm | Approach target flatness |
| Fine grind | Fine grit | 0.1–0.2 mm | Achieve ≤0.3 mm/m |
| Finish pass | Polishing wheel | <0.05 mm | Mirror finish (premium) |
What CNC Delivers
Flatness: ±0.3 mm over 1 meter (tournament standard)
Thickness consistency: ±0.5 mm across the slab
Surface finish: Ra ≤0.8 μm (smooth as glass)
Repeatability: Every slate identical
💡 Pro Tip: Some low‑cost suppliers still use hand scraping or manual grinding. These methods cannot achieve ±0.3 mm flatness. Always ask for a flatness certificate.
📖 Related: CNC Machining Technology in Slate Processing →
Part 5: CNC Drilling — Precision Bolt Holes
Once the slate is flat, it moves to a CNC drilling center to create bolt holes that match your table frame.
The Drilling Process
| Step | Action |
|---|---|
| 1 | Customer provides frame drawing (DXF or PDF) |
| 2 | CNC program is created from the drawing |
| 3 | Slate is positioned on the drilling bed |
| 4 | Drill creates holes at exact coordinates (±0.5 mm) |
| 5 | Countersink is milled to programmed depth (6–8 mm) |
| 6 | 100% bolt drop test verifies each hole |
Why CNC Drilling Matters
| Method | Position Tolerance | Risk |
|---|---|---|
| CNC drilling | ±0.5–1.0 mm | Low — holes align |
| Manual drilling | ±3–5 mm | High — misalignment, cracking |
💡 Pro Tip: Always provide your frame drawing before production. A reputable supplier will return a drilling confirmation drawing for your approval.
📖 Related: Snooker Slate Bolt Hole Position Standards →
Part 6: Edge Milling — Perfect Seams for Multi‑Piece Slate
For 5‑piece or 3‑piece slate, the mating edges must be straight and square to ensure tight seams.
CNC Edge Milling
| Parameter | Standard |
|---|---|
| Straightness | ≤0.3 mm over 2 m |
| Squareness | 90° ±0.1° |
| Surface | Smooth, no chips |
Result: Seams fit together with gaps <0.5 mm, requiring minimal filler.
📖 Related: How to Match 5-Piece Snooker Slate Sets for Perfect Seam Alignment →
Part 7: Sealing — Protecting Against Moisture
Natural slate is porous. Without sealing, it absorbs moisture from humidity, spills, and concrete floors — leading to warping, efflorescence, and cracking.
The 6‑Side Seal Process
| Surface | Method | Why |
|---|---|---|
| Top (playing surface) | Roller application | Protects from spills and humidity |
| Bottom (against frame) | Roller or spray | Prevents wicking from concrete |
| All 4 edges | Brush application | Prevents seam swelling |
Sealer Specifications
Type: Professional water‑based slate sealer
Coats: 2 coats minimum
Drying time: 24 hours before packaging
Verification: Water bead test — water beads for >30 seconds
💡 Pro Tip: Pre‑sealed slate saves your installation team a full day of labor. Insist on factory 6‑side sealing.
📖 Related: Snooker Slate Moisture Problems Explained →
Part 8: Quality Control — Testing Before Packaging
Every slate must pass a series of tests before it is approved for shipment.
The 7 Core Tests
| Test | Standard | Method |
|---|---|---|
| Density | >2.7 g/cm³ | ASTM C97 |
| Water absorption | <0.4% | ASTM C97 |
| Flatness | ≤0.3 mm/m | CMM or straightedge + feeler |
| Thickness | ±0.5 mm, variation <0.3 mm | Caliper at 5+ points |
| Tap test | Clear ring | Metal object |
| Backlight test | No light transmission | Torch in dark room |
| Bolt hole test | Bolt drops freely | Test bolt in every hole |

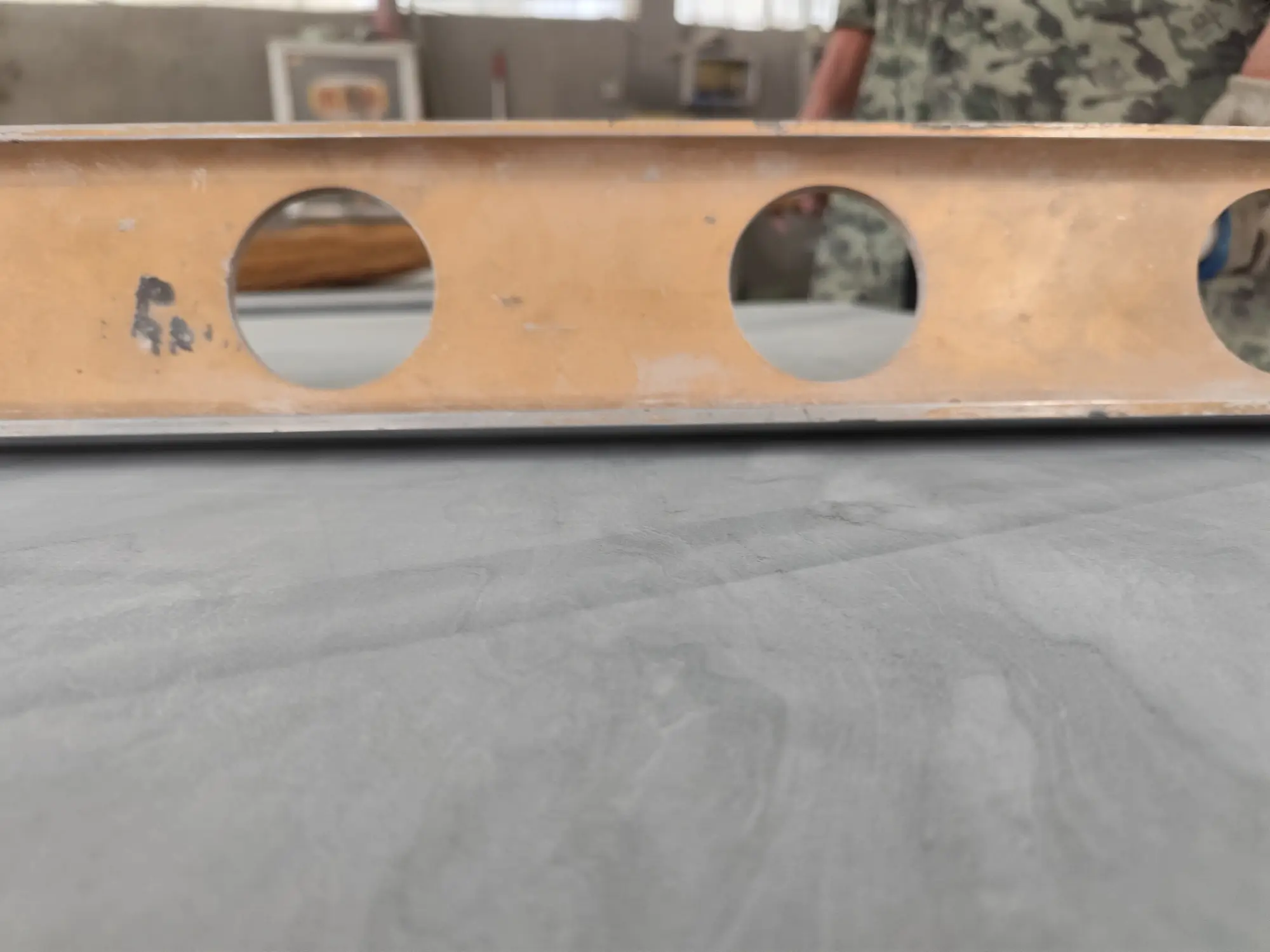

What a Flatness Certificate Looks Like
A reputable supplier provides a flatness certificate for each slate piece, showing:
Measurement grid (e.g., 5×5 points)
Maximum positive and negative deviation
Overall flatness value
Date and inspector signature
📖 Related: Snooker Slate Quality Inspection Checklist →
Part 9: Export Packaging — Surviving the Journey
Even the best slate is worthless if it arrives cracked. Export packaging is the final — and critical — step.
Crate Specifications (45 mm slate)
| Component | Specification |
|---|---|
| Plywood thickness | 15 mm (minimum) |
| Internal padding | 20 mm EPE foam (all 6 sides) |
| Strapping | Steel bands, 4–6 per crate, with edge protectors |
| Corner protection | Steel brackets |
| Slates per crate | Maximum 2 pieces |
| Base runners | 100×100 mm hardwood |
| Labels | “FRAGILE”, “THIS SIDE UP”, “HEAVY”, “DO NOT STACK” |
| ISPM‑15 stamp | Required on all wood packaging |
Container Loading
| Rule | Why |
|---|---|
| Floor‑load only — never stack 45 mm crates | Weight limit |
| Air bags between crates | Prevents shifting |
| Wooden blocking against walls | Lateral stability |
| Straps to anchor points | Secure cargo |
💡 Pro Tip: Ask for pre‑shipment photos of your crates before the container is sealed. It’s your only proof of proper packaging.
📖 Related: Snooker Slate Packaging Standards for Export →
Part 10: From Quarry to Container — The Complete Journey
| Stage | Location | Key Activity | Quality Check |
|---|---|---|---|
| 1 | Quarry | Block extraction | Visual, tap test |
| 2 | Processing plant | Cutting into slabs | Thickness |
| 3 | CNC grinding center | Surface flattening | Flatness ≤0.3 mm/m |
| 4 | CNC drilling center | Bolt hole drilling | Bolt drop test |
| 5 | Edge milling | Seam edge finishing | Straightness, squareness |
| 6 | Sealing station | 6‑side sealing | Water bead test |
| 7 | QC lab | Final testing | Density, absorption, flatness |
| 8 | Packaging line | Crating | Crate inspection |
| 9 | Container loading | Blocking and bracing | Loading photos |
| 10 | Port | Shipment | Bill of Lading |
💡 Key insight: Every stage is an opportunity to add quality — or introduce defects. A reputable supplier controls every step.
📖 Related: From Quarry to Container: How We Ensure Safe Export Packaging →
Part 11: Why This Matters to You — The Buyer’s Perspective
Understanding how slate is mined and processed helps you ask the right questions:
| Question | Why It Matters |
|---|---|
| Where is your slate quarried? | Grade A sources: Yushan (China), Genoa (Italy), Minas Gerais (Brazil) |
| Do you use CNC grinding? | Manual methods cannot achieve ≤0.3 mm flatness |
| Are bolt holes CNC drilled to my drawing? | Prevents misalignment and cracking |
| Is the slate 6‑side pre‑sealed? | Saves installation time, ensures moisture protection |
| Do you provide flatness certificates? | Verifiable proof of quality |
| What is your packaging specification? | 15 mm plywood, steel bands, 20 mm foam |
Red Flags:
🚩 “Our workers hand‑finish each slate” — no CNC
🚩 Cannot provide quarry source
🚩 No flatness certificate available
🚩 Packaging is “standard” without details
📖 Related: What to Check Before Buying 45mm Snooker Slate →
Case Study: From Yushan Quarry to World Championship
The Situation: Yushan County, Jiangxi Province, has a 400‑year history of stone quarrying. In 1996, Xingpai — one of the world’s largest billiard table manufacturers — came to Yushan searching for the perfect stone. They found bluestone reserves of 3 billion cubic meters and established a slate factory in 1997.
The Result: Today, Yushan produces 250,000 slates and 50,000 complete tables annually. Its products are used in prestigious tournaments including the UK Championship, the German Masters, and the Chinese Snooker Tour — and exported to over 70 countries including the UK and Italy.
💡 Lesson: The world’s best tournaments trust Yushan bluestone because the complete process — from quarry to CNC grinding to packaging — meets professional standards.
📖 Related: Why Jiujiang Slate Is Famous Worldwide →
Final Word: Quality Is Forged at Every Step
How billiard slate is mined and processed is not a mystery. It is a sequence of intentional choices:
✅ Quarry selection — Grade A blocks from trusted sources
✅ Precision cutting — diamond wire saws following natural cleavage
✅ CNC grinding — ≤0.3 mm/m flatness, certified
✅ CNC drilling — bolt holes to your drawing, 100% tested
✅ CNC edge milling — straight, square seams
✅ 6‑side sealing — moisture protection
✅ Export packaging — 15 mm plywood, steel bands, 20 mm foam
When you buy slate that has passed through this complete process, you’re not just buying stone. You’re buying a precision‑engineered product built for decades of true play.
At Slate of China , we oversee every step of this journey:
🪨 Grade A Yushan bluestone — from the world’s billiard slate capital
📏 CNC ground to ≤0.3 mm/m — flatness certificate included
🔩 CNC drilled to your drawing — bolt drop test passed
🔪 CNC milled seams — straight, square, smooth
🧴 6‑side pre‑sealed — ready for cloth
📦 Export packaging — 15 mm plywood, steel bands, 20 mm foam, ISPM‑15
📸 Pre‑shipment photos — see your slates before they ship
🌍 Shipped to 30+ countries — with proven logistics
